Flow Actions

Split Document using AI

Introduction

The CloudFiles: Split Document Using AI flow action enables automated splitting of merged PDF files stored in Salesforce or external cloud storage into individual documents. By leveraging AI, the action intelligently identifies and separates multiple documents within a merged PDF. This is particularly useful for processing files like scanned bundles of invoices or multi-document contracts.



Document image


What this action does

The CloudFiles: Split Document Using AI action asynchronously processes a specified merged PDF document and splits it into multiple files based on its contents. These split files are then saved to a specified destination in Salesforce or an external storage platform. Instead of providing direct outputs, the action publishes a Document Split event upon completion. This event includes metadata for the generated files, which can be used for further automation.

Example Use Case:

Automating the processing of uploaded invoice bundles. A merged PDF containing multiple invoices is split into individual invoice files, which are then saved to a designated folder in Salesforce or external storage.

Input Parameters

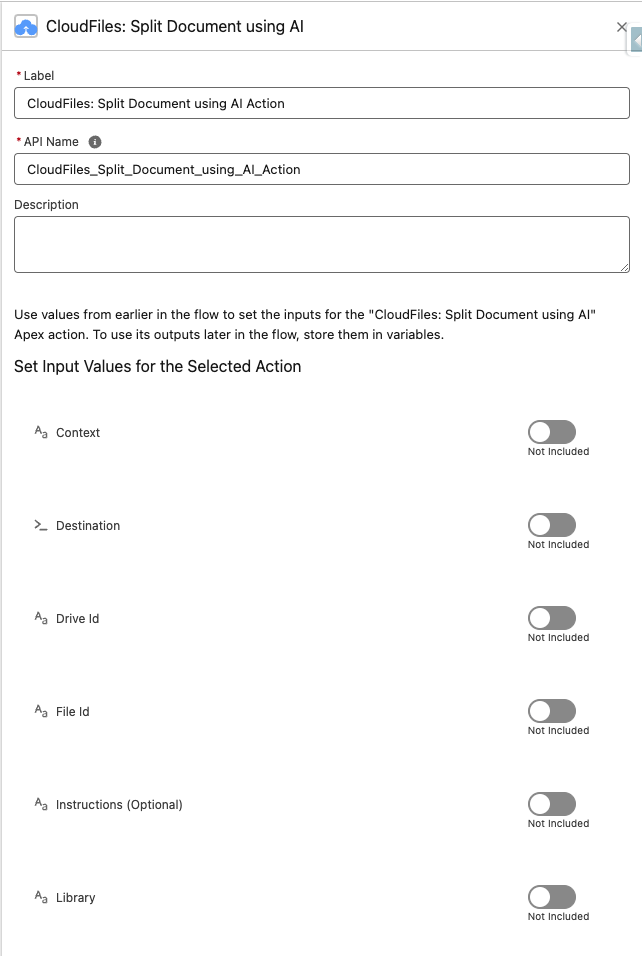

In your Flow Builder, search for the element named "CloudFiles: Split Document using AI". You can find this action in the CloudFiles category when you click on the "Action" element in the "Add Element" box. Select the action to insert it into the flow, and then configure the input parameters.

To Split a Salesforce File

In order to specify a Salesforce File to be processed, Input paramters as:

  1. Library - salesforce
  2. FileID - The ContentDocumentID of the Salesforce File to be split.

You can get the ContentDocumentID of the Salesforce File from other standard salesforce elements like "Get Records" or standard Screen Flow "Upload Files" component or from details of CloudFiles Events like Salesforce File Attached.

  1. You can only split a Salesforce File in ContentDocument format.
  2. You cannot split an Attachment i.e. Classic Salesforce File format.
  3. It is mandatory to input both Library and FileID to specify a Salesforce File.

To Split an External Storage File

If you are using CloudFiles: Document Managemnt pacakage as well, then you can Process and Split file in connected external storage as well.

In order to specify an External Storage File to be processed, Input paramters as:

  1. Library - The Library parameter is the external storage type you are using. Possible values are sharepoint, google (for Google Drive), azure , onedrive, dropbox, box, cloudfiles (for AWS S3).
  2. DriveID - The ID of the drive where the document resides. This is important for Google Drive & Sharepoint libraries only. The Drive ID is a unique identifier for a storage location in both SharePoint and Google Drive. In SharePoint, it represents a document library within a site, while in Google Drive, it identifies a user's drive or shared drive.
  3. FileID - The unique identifier (ResourceId) of the file that is to be processed.

Based on the use case, you can get these parameters from details of other CloudFiles Events like File Uploaded or File Received etc.

Context

An optional identifier to track the source of the event or anyother intended/necessary details. This shall be available in corresponding output i.e. in the corresponding Document Split event details.

The Context parameter is particularly helpful if this action is used in multiple flows. For example, if you’re processing documents attached to Contact records, you can set the Contact’s recordId as the Context. When events are published, this Context value will help you track the origin of each event by showing the associated Contact record.

Destination

The Destination parameter determines where the generated files will be stored after CloudFiles completes the splitting process.

Steps to Configure Destination:

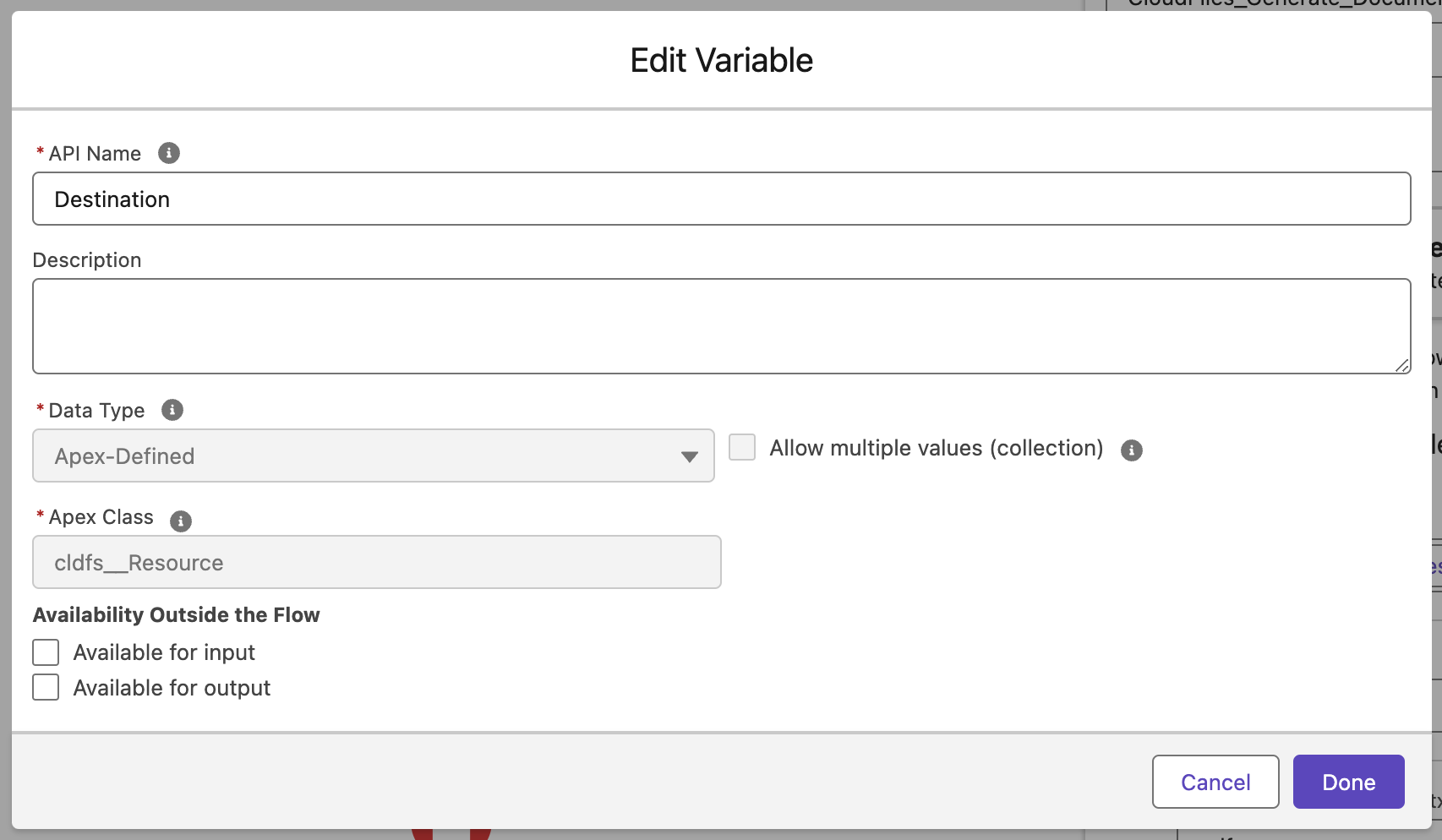

  1. Create an Apex-Defined Variable of Apex Class cldfs__Resource
    1.

      Document image

  2. Assign the necessary metadata (e.g., Library, DriveId, Id) based on the chosen storage option.
  3. To Save in Salesforce
    • Default Behavior (Salesforce Files):
      • If no destination parameter is specified, the files shall be stored in the Salesforce File Library.

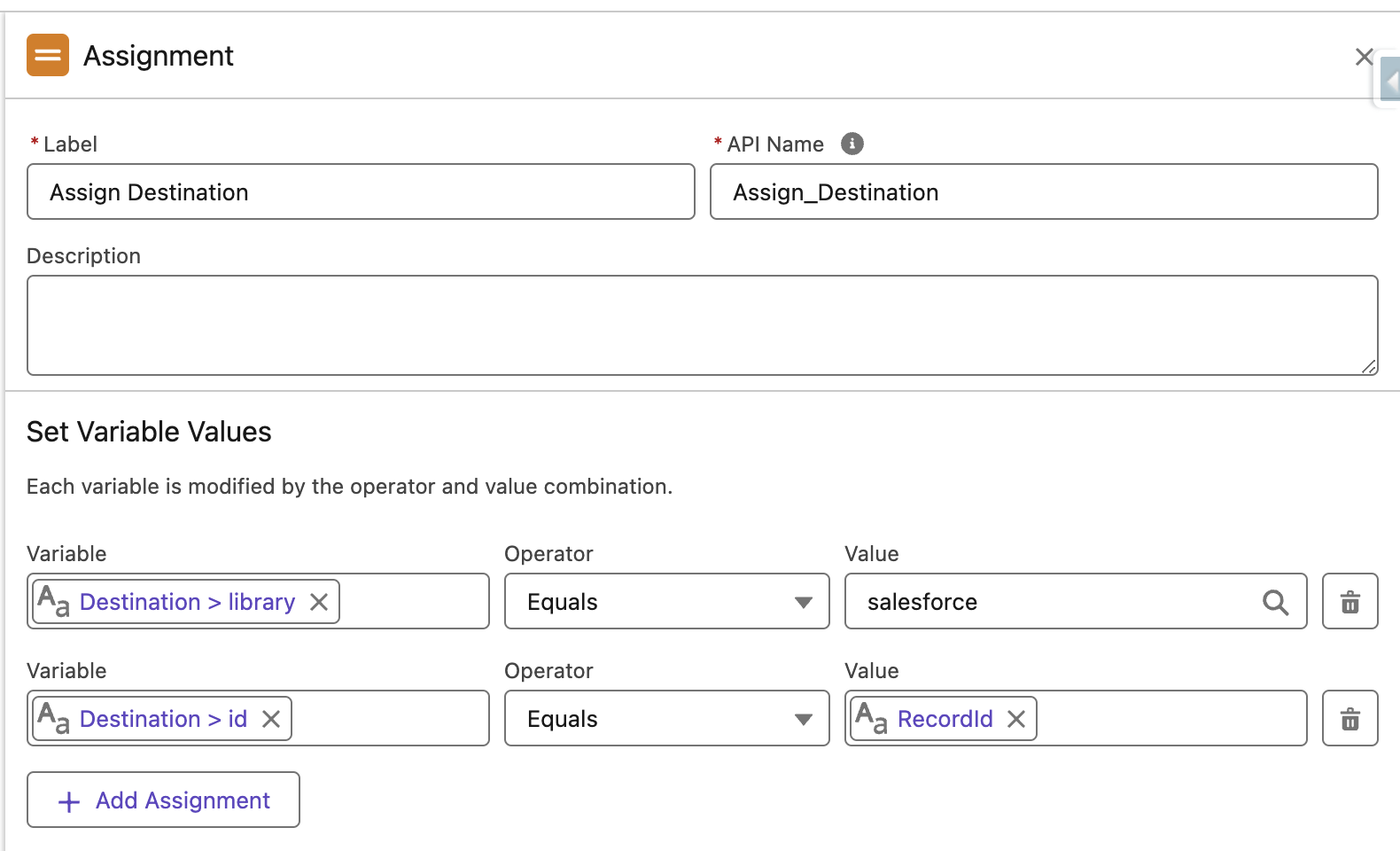

    • Link to a Specific Record:
      • Assign the following fields:
        • Library: Set to salesforce.
        • Id: Set to the RecordId of the Salesforce record to which the files will be linked.
        •

          Document image

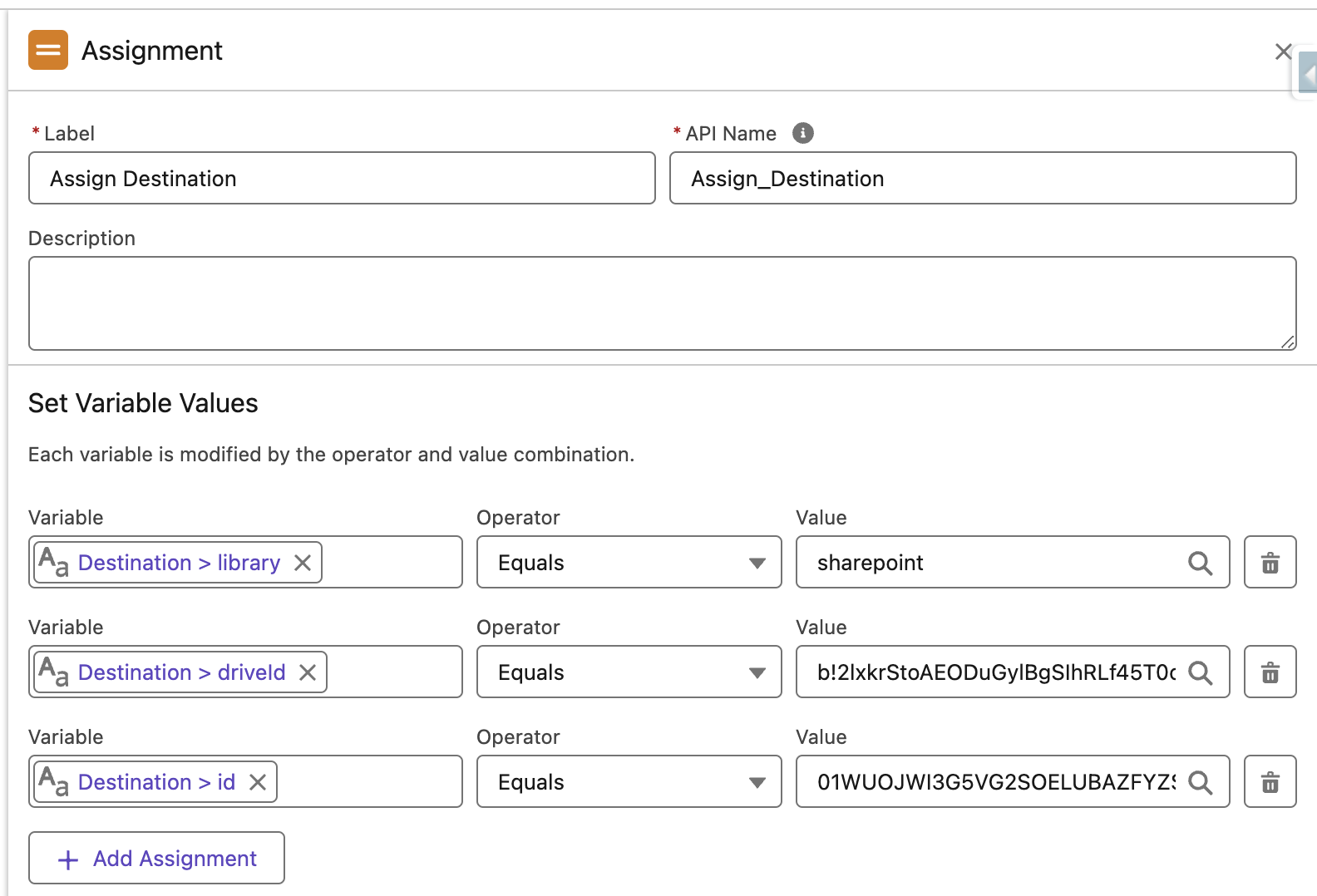

  4. To Store in External Storage
      • Assign the following fields to define the external storage location:
        • Library: Specify the library name.
        • DriveId: Specify the ID of the connected drive.
        • Id: Specify the ID of the folder or location within the drive.
        •

          Document image

  5. Pass the configured variable as the Destination Parameter in the CloudFiles: Split Document Using AI action.

This setup provides flexibility to store files in Salesforce or external storage, aligning with your business needs.

Output Parameters

The apex action does not return anything as an output in the flow it is used but for every file processed for split a Document Split event is published. This event signals the completion of document split and can be used to trigger platform event flows to perform post-split actions.

If the action fails due to some reason an error-event event will be triggered and this event can be used in a decision element to diagnose and handle the error.
